gia công kim loại máy cắt laser công nghiệp đầy đủ loại 1000w

Thông tin chi tiết sản phẩm

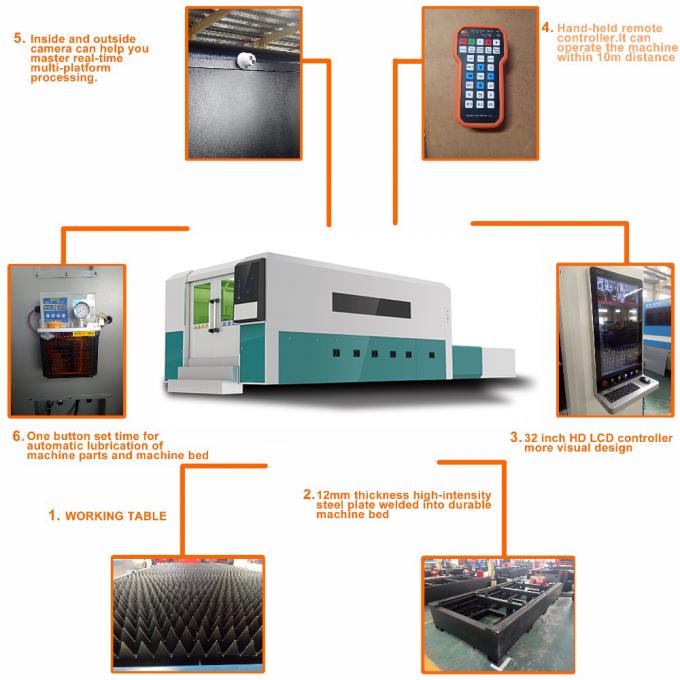

The whole machine consist of machine tool, motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Product features

1. Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision.
2. Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3. X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4. Based on Windows operating system, use professional Bochu cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.
5. Laser-produced without gas, it could use air to cut sheet metal.

Thông số kỹ thuật

Fiber laser power : 500W, 800W, 1000W (Optional)
X, Y and Z axis stroke : 3025mm, 1525mm, 100mm
Weight : 5500KG
Appearance size : 4800*2600*1750mm
Kích thước làm việc: 3000 * 1500mm
Độ chính xác định vị X và Y: + -0,05mm
Max speed : 100m/min
Max acceleration : 1G
Max load-bearing of work table : 500KG
Transmission mode : important high precision with double driving rack
Power consumption of whole machine : < 15KW (< 12KW-1 KW)
Rated voltage and frequency : 380V/50Hz/60Hz/60A
