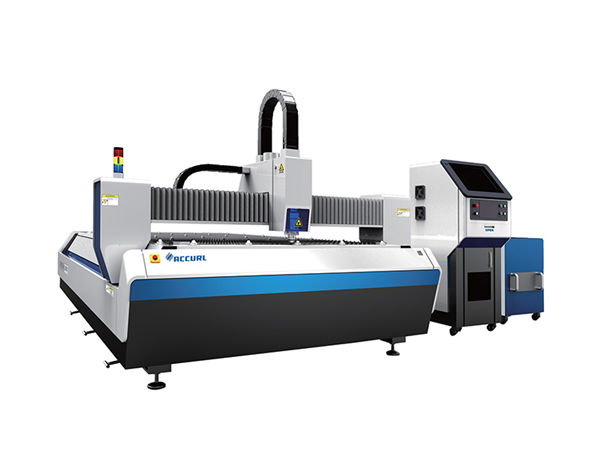

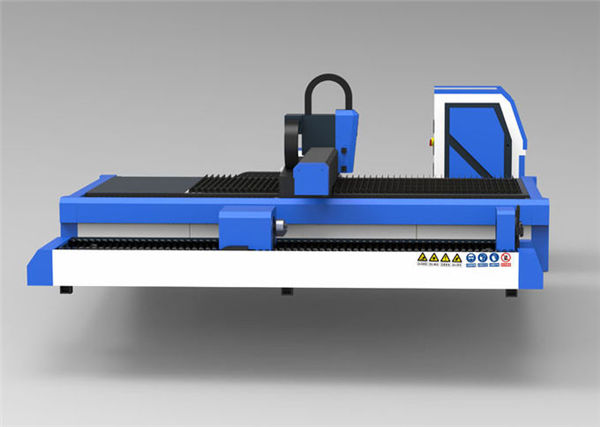

middle power stainless steel laser cutting machine ,1500w laser sheet cutting machine

Thông tin chi tiết sản phẩm

Chứng nhận: CE / FDA
Điều khoản thanh toán và vận chuyển:
Số lượng đặt hàng tối thiểu: 1 BỘ
Giá: USD Thỏa thuận
Chi tiết đóng gói: Hộp gỗ có đai sắt
Thời gian giao hàng: 15 - 30 ngày làm việc
Điều khoản thanh toán: T / T, L / C, Western Union
Khả năng cung cấp: 2000 đơn vị mỗi năm

Mô tả sản phẩm Chi tiết

Khu vực cắt:	1500 * 3000mm	Chế độ làm mát:	Nước làm mát
Công suất laser:	1500W	Phần mềm điều khiển:	Cypcut
Điều kiện:	Mới	Tải tối đa của Worktable:	1000kg
CNC hoặc không:	Vâng	Bước sóng laser:	1060-1080nm
Định vị chính xác:	± 0,05 Mm	Điện áp làm việc:	380V / 50Hz

Mô tả Sản phẩm

1. The machine is welded with a high-intensity whole sheet, and after high temperature annealing,the machine can be used for 20 years without any deformation.
2. With imported precision gear and rack, linear guide rail and transmission,the machine tool is of high precision, high efficiency and high stability.
3. Equipped with advanced wireless handheld terminal,the machine can be operated with remote control.
4. The equipment adopts the laser special speed matching system, high performance servo motor drive, is the integration of pneumatic, mechanical, photoelectric, numerical control and other advanced technologies as one of the high-tech products.

Tính năng, đặc điểm

1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.
2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficieny.
3. Equipped with exhaust device, have good exhausting effect and little pollution.
4. Small occupied area, high system integration, convenient to operate and maintenance, 24 hours continuous working.
5. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.

Fiber Laser Cutting Machine Different Laser Sources Comparing

Model of Laser Source	Chất xơ	CO2	Disc
Electro-optical Conversion Efficiency	30%	10%	15%
Max. Output	50Kw	20Kw	8Kw
BPP(4/5Kw)	<2.5	6	8
Life of Diode Pumped	>100,000	NA.	10,000
Occupied Area(4/5Kw)	<1M2	3M2	>4M2
Maintenance	no need	need	Often
Soft Processing	more suitable	unsuitable	suitable
Stability	best	good	good
Absorption rate%--steel	35	12	35
Absorption rate%--aluminum	7	2	7
Replaced Parts	High brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other.	Laser work requires gas supplement, reflection lens replacement.	Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000.

Applied materials of 1500W Fiber Laser Cutting Machine

Máy cắt sợi chủ yếu được sử dụng để cắt thép carbon, thép nhẹ, thép không gỉ, thép silicon, hợp kim nhôm, hợp kim titan, thép mạ kẽm, bảng tẩy, tấm kẽm nhôm, đồng và nhiều loại vật liệu kim loại. Nó là một máy cắt laser cnc có thể được sử dụng để cắt chính xác cao. Nó cũng có thể được gọi là máy cắt sợi, máy cắt laser sợi quang, máy cắt laser cho kim loại, máy cắt sợi, cắt thép carbon, máy cắt laser cnc.

Thông số kỹ thuật

Khu vực làm việc	3000 * 1500mm
Người điều khiển + Người theo dõi cao	Cypcut
Nguồn Laser	Fiber Laser Source 1500W
Độ dài sóng	1070nm ± 10nm
Đầu Laser	Không bắt buộc
Bánh răng và giá đỡ	nước Đức
Hướng dẫn đường sắt	HIWIN Đài Loan
Định vị chính xác	≤ ± 0,04mm
Độ dày cắt	1-20mm
Tốc độ cắt tối đa	40000mm / phút (theo vật liệu)
Điện áp làm việc	AC220V / 110v ± 10% 50HZ / 60HZ
Chiều rộng dòng tối thiểu	≤0,12mm
truyền tải	Bộ giảm tốc Yaskawa servo 850W + FAoston
trục Z	Phanh Yaskawa 400W +
Làm mát	Nước làm mát
Kết cấu	Ống thép hàn dày 10 mm, Giàn hợp kim nhôm
Sự tiêu thụ năng lượng	.57,5KW

Performance for 1500W Fiber Laser Cutting Machine

1.The machine enjoys outstanding performances with high cutting speed, high efficiency, safety and stability. And diode pump solid state laser has the advantage of longer working life, free maintenance and the highest photo-electric conversion efficiency. It also ensures a small divergence angle and light beams of good quality.
2. The light spot enjoys good quality and small heat deformation. Besides, cutting seams are even and nice.
3. After tempering treatment, steel frames with high rigidity are of high vibration-absorbed performance with tempering treatment. And frames with gantry structure are one-step processed in large CNC gantry machining center. With optimized structure, the machine enjoys stability and high accuracy.
4. Imported servo motors and sophisticated direction transmission mechanism ensure high steadiness and accuracy.
5. An intuitive human-machine interface (HMI) with many practical functions is easy to operate.
6. An imported ball screw and linear guides ensure transmission and direction.
7. The sealed cutting head automatically tracks work pieces and has the function of anti-collision.
8. The power supply of the machine is designed with automatic safety protection, and features fault alarm.
9. With fashionable, delicate and artistic design, the compact machine covers smaller floor area without scattered parts. And it’s easy to operate the machine.
